Special-purpose marking solutions
Our solution sector along with special machine construction offers a wide product range to you. Marking with special characters, Data Matrix codes or vehicle identification numbers, as well as marking complex components can be achieved by a number of different marking techniques. We offer products ranging from conventional stamping methods, flexible, scribing and stylus marking machines to customized marking solutions for integration into the manufacturing process.
Designed to meet your specific requirements our marking systems are individually configurable and can be fitted with an integrated code-reading system.
Our special machine engineering department at BORRIES combines proven and realiable solutions with individual, robust designs, modern control and programming technology.
Unlike competitors we use robust, welded steel frames. The advantage over aluminium profile rails is the high stability and durability of the system.
Since we see ourselves as your system partner and everything comes from a single source, we can respond to any customer requests in the best way and shortest possible time, especially with special purpose machine projects.

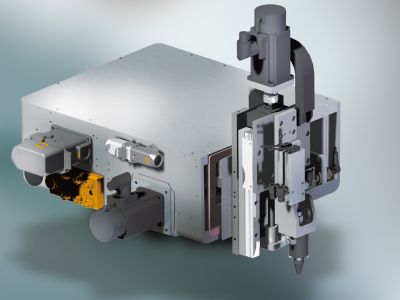

Marking unit with automatic surface detection
Roll marking machines BM79EL for marking brake discs
Marking of brake discs with different outside diameters, pot heights and friction ring thicknesses. Integration in a fully automatic plant. Complete protective enclosure with electrically interlocked operator doors.
Roll marking machine BM79 for marking brake discs
Marking of brake discs with different outside diameters, pot heights and friction ring thicknesses. Integration in a fully automatic plant. Loading and unloading of the discs via gantry gripper.
Special marking unit model 325 for marking brake discs
Fully automatic marking of at least 5 different brake discs with outside diameters of 220 to 420 mm and total heights of 25 to 100 mm. Detection of balancing milling. Integration in a fully automatic plant.
Special marking unit model 322 for brake discs marking
Marking of brake discs on the pot, in three sub-segments. Adjustable, pneumatic feed axis for different diameters. Installation in an automatic process.
Special roll marking machine for marking aluminium gas cylinder
Fully automatic labelling station for barcode labels
Simultaneous double marking on a gear shaft
A fascinating example from the area of special machine construction of BORRIES marking systems:
For our customer ZF Friedrichshafen, BORRIES built a system for marking a gear shaft. The special feature is the two 322 marking units that each apply the markings simultaneously on one side of the axle. A Data Matrix code is marked on one side of the shaft and plain text (dot-peening) on the other side. Finally, the DMR 220 IOSS camera reads and evaluates the Data Matrix code.
Special marking unit model 312 for marking rings
Semi-automatic marking system for the individual marking of rings. Pneumatic separation of the rings with transfer to the clamping device. Parts collection container under the marking area.
Roll marking machine BM79EL for marking stainless steel tubes
Manual workstation in semi-automatic production process. The double mandrel holder is designed for the quick change of different workpiece sizes.
Special marking unit model 326 for marking round workpieces
The marking unit moves around a stationary component in a circumferential direction. Third axis for making contact on the workpiece diameter. Scribe, stylus, dot-peening and Data Matrix code marking.
Mobile chassis number marking system. Marking of several vehicles possible via different adapters. With manual input and barcode scanner, alternatively with data connection to the production system.
Roll marking machine BM79EL for marking gearwheels
Identification of the gears with a unique type part number. Loading of the mandrel roll-off device and the two-hand release is carried out manually by the operator.
